Project Description

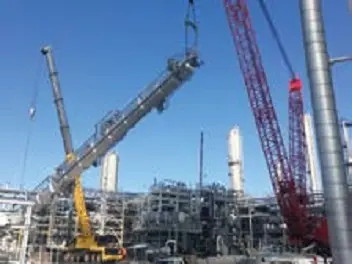

Propak provided detailed engineering and design, procurement and fabrication services to build a 30,000 bbl/d Depropanizer Unit and a 9,000 bbl/d Debutanizer Unit. Propak’s stacked design, modularization strategy, and ability to trial-fit large modules in a shop environment minimized field construction time, reducing overall project cost and schedule. Propak’s unique module design allowed for improved access to all equipment in a reduced plot area compared to the previous fractionation train installed at this site. This unit will produce Propane products that exceed the HD-5 propane specifications.

Project Specs
  • Nameplate Capacity: 30,000 bbl/d (Depropanizer) and 9,000 bbl/d (Debutanizer)
  • Depropanizer Unit: 48 Tray 2 Pass Fractionation Column, Condenser, Reflux Accumulator, Reflux Pumps, Reboiler, Overheads Product Cooler
  • Debutanizer Unit: 42 Tray 1 and 2 Pass Fractionation Column, Condenser, Reflux Accumulator, Reflux Pumps, Reboiler, Overheads Product Cooler, Bottoms Product Pumps, Bottoms Product Cooler
  • Services Provided
    • Engineering
    • Design
    • Procurement
    • Fabrication
