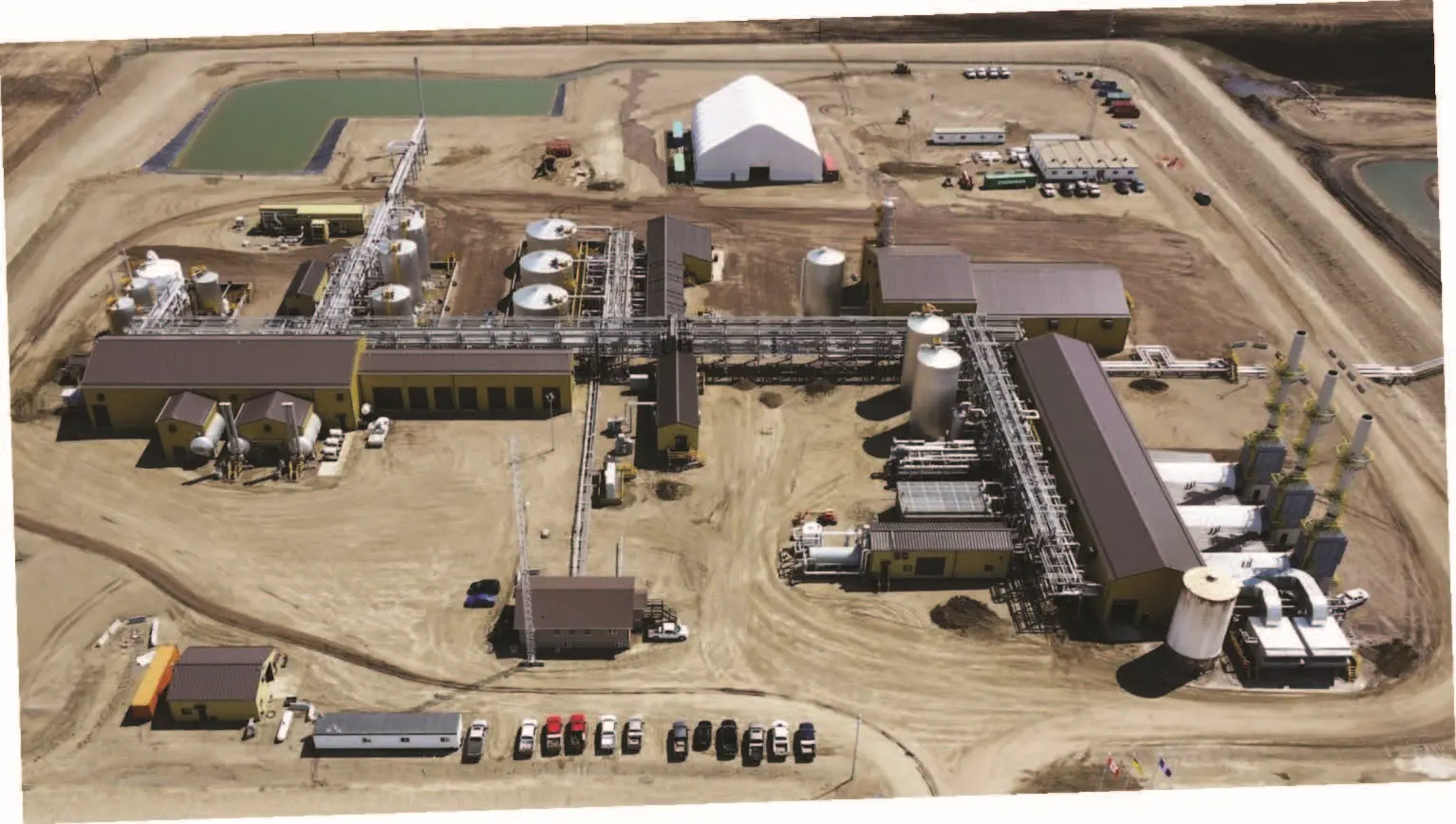

10,000 bbl/d SAGD Central Processing Facility

Contact Us
Project Description

A competitor performed an initial pre-FEED study and proposed a high estimated cost to the client. Propak was then brought in to complete a FEED study to evaluate the design. This study concluded with Propak proposing a highly modularized plant solution taking advantage of Propak’s integrated EPF approach. Propak engineered, fabricated and constructed a modular plant creating schedule and cost advantages. Upon completion, the result was a $21M net reduction in actual project cost from the original estimate and an approximate 55% reduction in CPF footprint. A competitor performed an initial pre-FEED study and proposed a high estimated cost to the client. Propak provided cost and schedule certainty to the client though applying an integrated EPF solution along with a highly modularized, shop fabricated facility.

Project Specs
  • Nameplate Oil Capacity: 10,000 bbl/d
  • Steam Generation Capacity: 31,200 bbl/d CWE
  • Pipe Racks modularized, assembled and trial fit at Propak’s Airdrie facilities
  • Highly modularized facility design
  • Process Units: Inlet Separation, Emulsion Treatment, Source Water Treatment, Boiler Feed Water System, OTSGs, Steam System, De-Oiling, Fuel Gas System, Utilities
  • 1 Pad: 9 SAGD Well Pairs
  • Modular well pad facilities: pre-assembled pipe racks, well control manifold building, test separator building complete with horizontal test separator vessel.
  • Services Provided
    • Engineering
    • Fabrication
    • Procurement
    • Commissioning & Start-Up
    • Design
    • FEED
    • Field Construction
